XRay Test Runs levels in Jira Snapshots

If you use XRay Test Management for Jira you can use Jira Snapshots to create test reports.

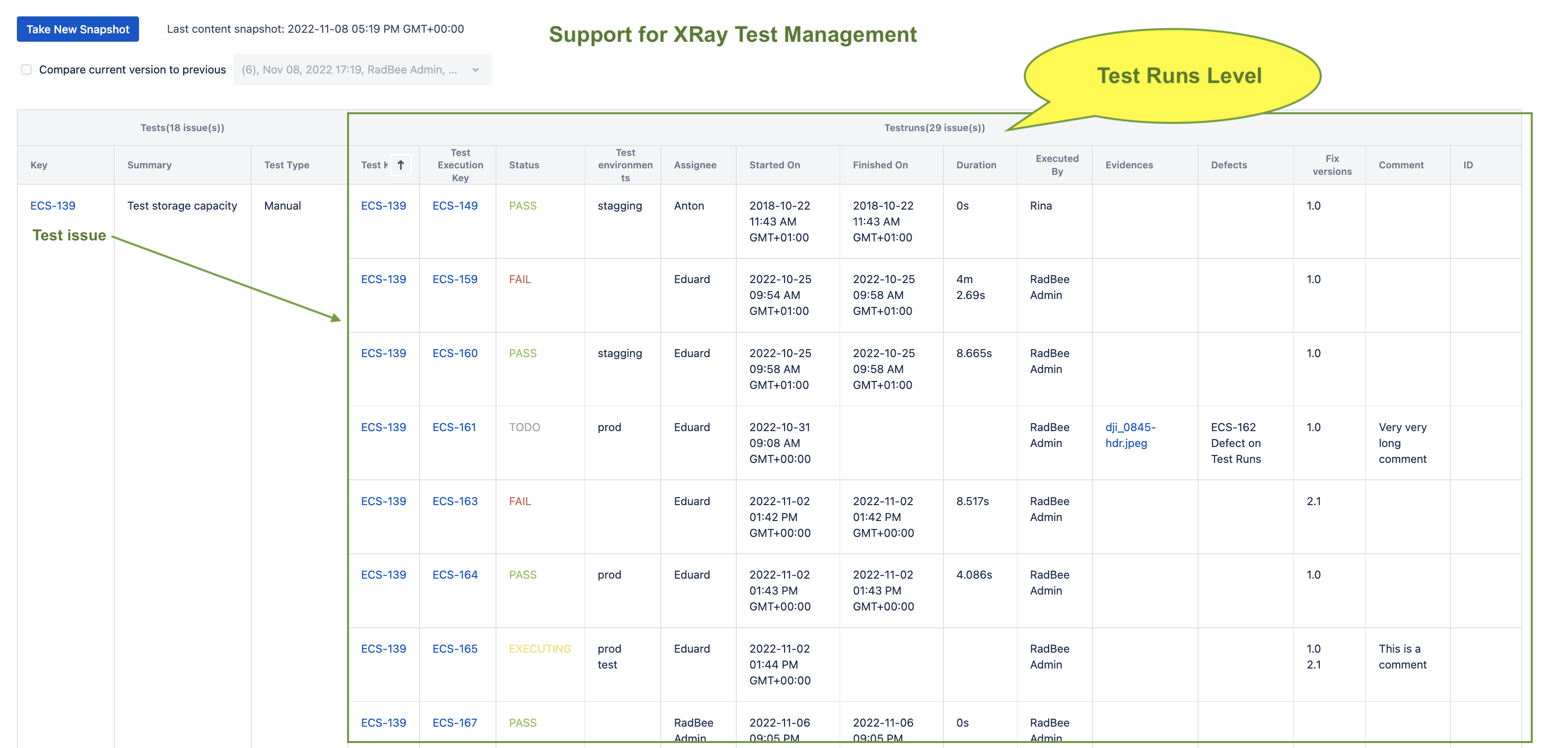

Many details of Test Runs can be included in their own type of level: a Test Run level.

With a Test Run level:

1. You can include the data related to the test runs of the test. For test issues in a certain level, if the next level is a Test Runlevel, then the test run data of that test will be included in the test run level.

2. You can filter which test runs are included in the level. The inclusion is a combination of these criteria:

   1. All, or only the latest test run

   2. Test runs associated with specific versions

   3. Test runs associated with specific test environments

3. You can include many fields which are specific to test runs.

How to configure a “Test Run level”

A test run level is always the last level, but it cannot be the 1st level.

Once a test run level is set, lower level cannot be added.

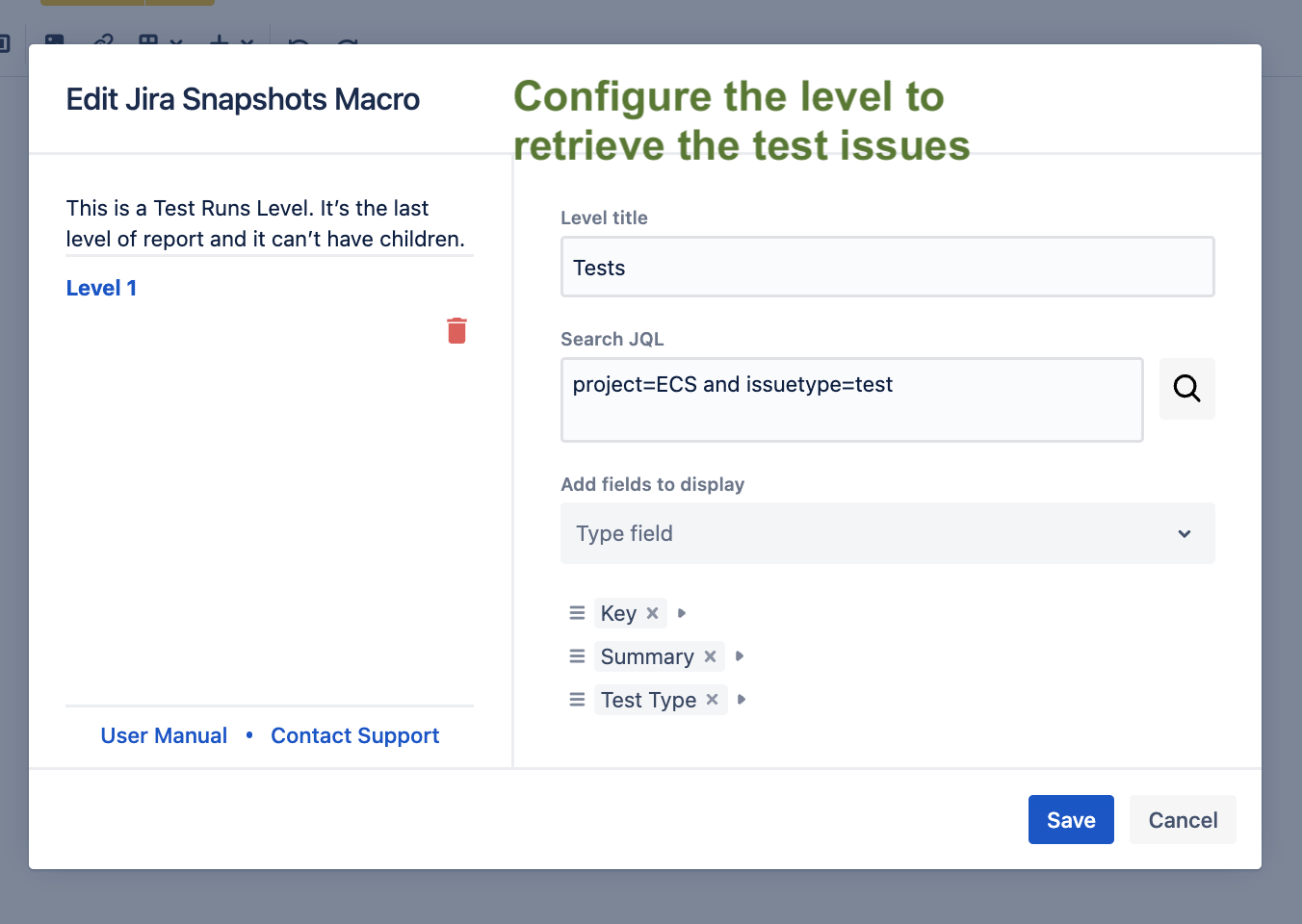

1. Start by creating a level to retrieve the Xray test issues you need.



2. Once the test level is configured, add a new level

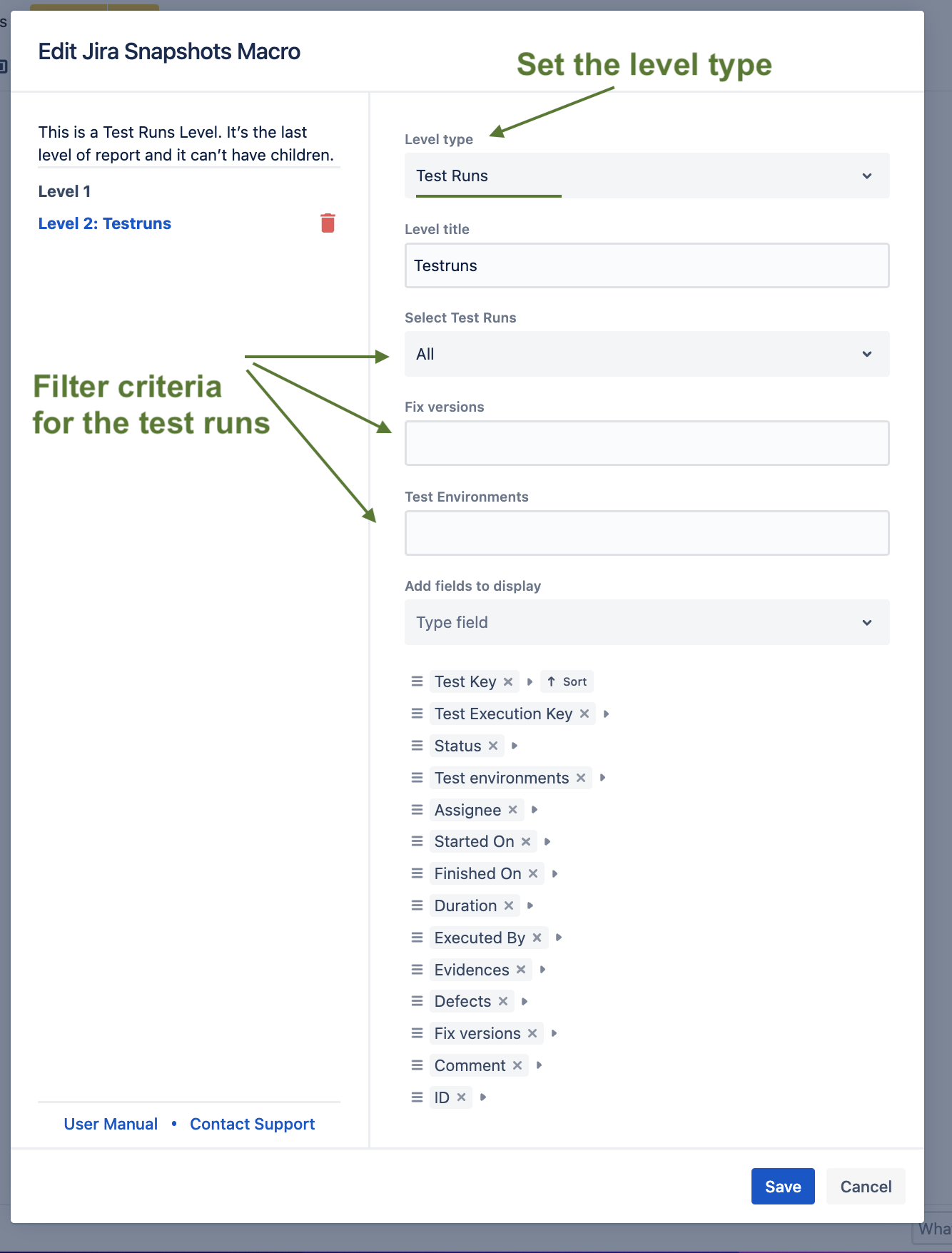

3. To configure the new level as a Test Runs level:

   1. Set the level type to be “Test Runs”

   2. Use the available criteria to filter which test runs will be included

   3. Set the fields to display
